Automate Deployment of the ELK/EFK Stack with Ansible

ELK_IconansibleI recently needed to completely automate deploying a full ELK/EFK stack and clients and didn’t find anything that suited my needs so I wrote the playbooks for this in Ansible.  This was my first real foray into automation with Ansible, hope it’s useful to others.


What is ELK?

ELK is an acronym for an extremely useful stack of log aggregation and datastore utilities for centralized log management and analysis.  I’ve written a few posts on the topic before but here I’ll show you how to easily get it deployed on both servers and associated clients on Red Hat/CentOS based systems.

Update: ELK has been upgraded to 5.2.1 and an optional 2.4 git branch is available for anyone that wants to use that one.

Update:  By request optional support for Fluentd instead of Logstash, or the EFK stack is available.  Note that it will currently use rsyslog to send logs and ships with options to ferry the most common OpenStack logs located in /var/log/.

Supported Distributions
These Ansible playbooks will work on any CentOS7 or RHEL7+ Linux system both as a server and client (sending logs to ELK).  Fedora23 and higher will need the yum python2 python2-dnf libselinux-python packages as Ansible does not yet have support for Python3.  If there is a demand for Ubuntu/Debian please file an issue and comment and I’ll look at adding support.

What Does it Do?

  • elk.yml
  • Installs and configures Elasticsearch, Logstash and Kibana on a target Linux server
    • Sets up firewall rules depending on if you’re using a firewall and what type (firewalld or iptables-services)
    • Uses nginx as a reverse proxy and htpasswd authentication.
    • Adjusts the Elasticsearch heapsize to 1/2 of the system memory to a max of 32G
    • Generates client and server SSL certificates for secure data transmission including SubjectAltName support (for test environments without proper DNS)
    • Listening ports are configurable in install/group_vars/all.yml
    • Can substitute Fluentd instead of the default Logstash
    • Optionally install the Elasticsearch curator tool for managing indexes
  • elk-client.yml
  • Installs the Filebeat client to send logs to the target ELK server on target clients
    • Sets up forwarding of most system services and OpenStack logs
    • Immediately starts forwarding logs to your specified ELK stack
    • Sets up rsyslog if you opt to use Fluentd instead of Logstash.

Getting Started
First you’ll want to clone the git repo here:

git clone https://github.com/sadsfae/ansible-elk

Install Ansible.  Substitute yum and the EPEL repo if you’re not using Fedora.

dnf install ansible -y

Edit the Ansible (inventory) hosts file with your target ELK server and ELK clients.

cd ansible-elk
sed -i 's/host-01/your_elk_server/' hosts
sed -i 's/host-02/your_elk_client/' hosts

Optional Settings
Next, take a look at the optional parameters located in install/group_vars/all.yml.  You can change things like default ports for services, or substitute Fluentd instead of Logstash.  You can also install the optional curator tool for managing your indexes.  For most people leaving the defaults will work fine, and you can skip this part.

logging_backend: fluentd  <-- using an alternate backend in all.yml
install_curator_tool: true  <-- install curator for index management

Install your ELK Server
If you are happy with the default options run the elk.yml playbook against your target ELK server.

ansible-playbook -i hosts install/elk.yml

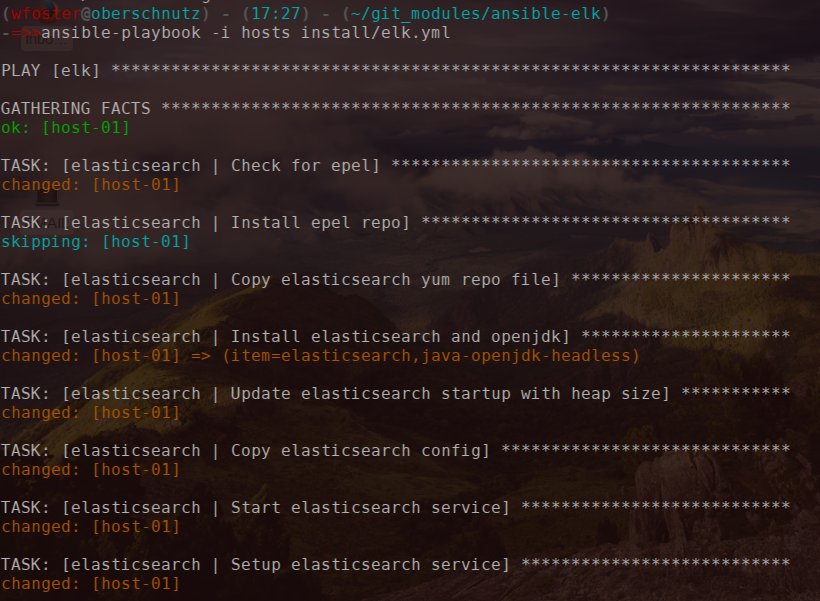

elk-server-ansible

When this finishes you’ll see some messages displayed, including the second Ansible command to install on the clients to send logs to the server.

Setup Index
I did not automate this part because I wanted to give people an opportunity to name their index prefix and type as they wish.

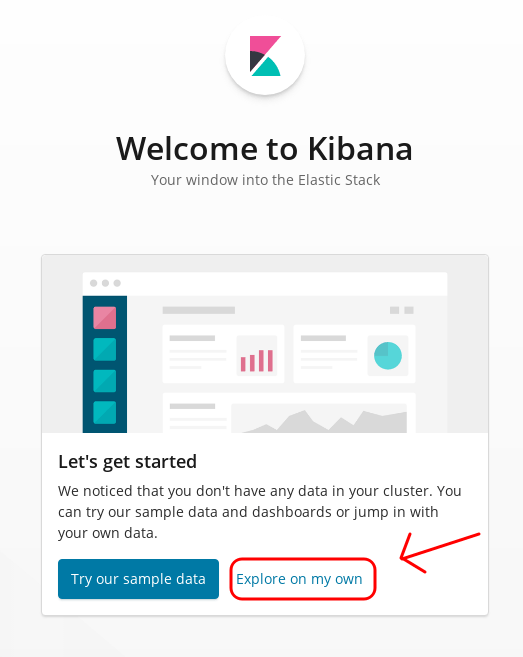

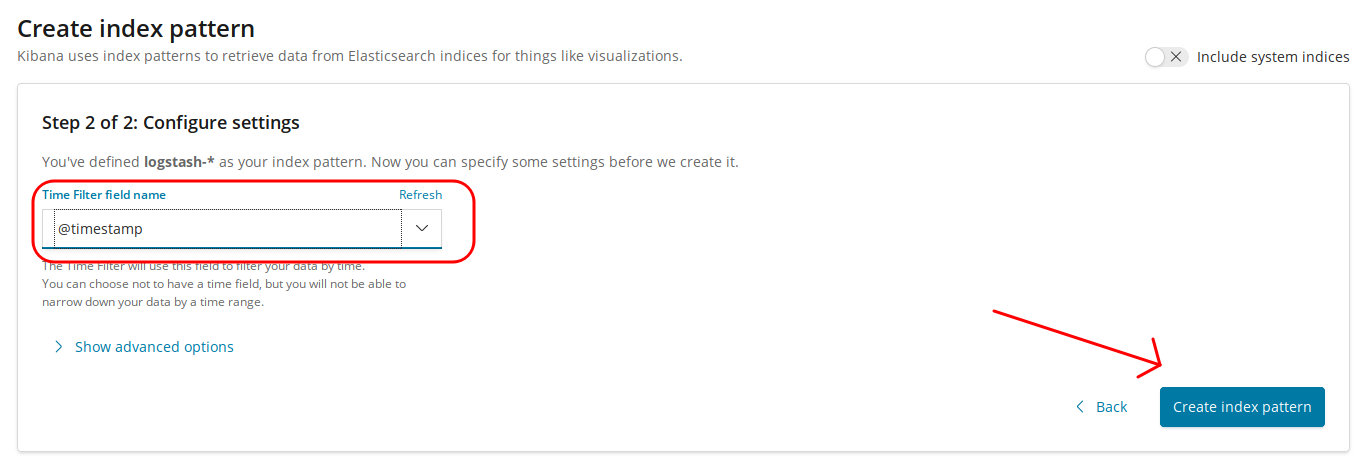

Navigate to the URL generated when the playbook completes (mine was http://host-01) and click the green button to create your index.  Use admin/admin to login (change this later at your leisure).

elk-index

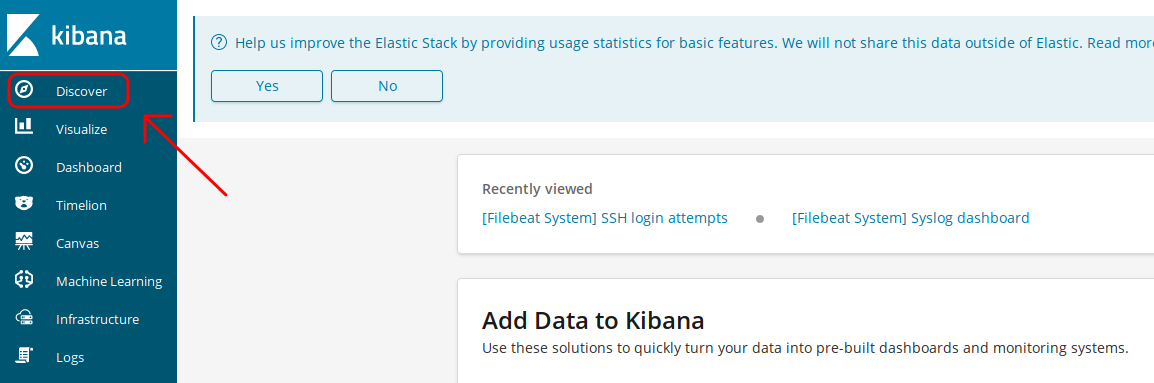

Once this is done you should see some of the local logs sent to Elasticsearch via the “Discover” tab.  You should now have a fully functioning ELK server stack.

Install Filebeat on Clients
Now you’re ready to start sending remote logs to the ELK stack.  Go back to your Ansible terminal and copy the printout command at the end, it should reflect how your ELK server was setup.  For example in my VM setup my command was this for RHEL7/CentOS7 clients:

ansible-playbook -i hosts install/elk-client.yml \
-e 'elk_server=192.168.122.82'

If you opted to use Fluentd instead of Logstash then it will install and setup rsyslog forwarding instead of the Filebeat client, capturing common logs used for OpenStack in /var/log/.  Like all configs you can edit these in the playbook and re-run Ansible to take effect.

Fedora 23+ Clients
If you have any Fedora23+ clients you’ll want to ensure a few extra python2 packages are installed first on any Fedora ELK clients before you run the above command so run the below command first (this is needed until Ansible comes with Python3 support).

ansible fedora-client-01 -u root -m shell -i hosts -a \
"dnf install yum python2 libsemanage-python python2-dnf -y"

Now you can run the above playbook command.

Watch it come together
Now any ELK clients you have should be setup in parallel.  Just like the ELK server Ansible run you’ll start to see things come together – this should be pretty fast.

elk-client-ansible

At this point you should see logs trickle in from all the client(s) you have setup.  Note that your client /etc/filebeat/filebeat.yml file is setup for generic /var/log/*.log and OpenStack services, edit to your liking to pull in what you desire to ELK.

elk-ui

I’ve got a friend who had the same really creepy pizza delivery guy always say “we’ve done all the hard work, all you have to do is eat.”  This is sort of like that except Ansible does all the heavy lifting and you just get to ELK it up.

Using Kibana Dashboards
Kibana 5 adds a lot of functionality to the Kibana dashboard experience, but basically everything that you can log you can graph and visualize with a high level of customization.  We won’t cover all of that here, but I’ll be adding more details about further optimizing your Kibana dashboard, perhaps in a different post.  For now the extra Kibana dashboards for Filebeat have also been included in these playbooks as a starting point.

ELK 2.4 Series
By default the current version is 5.2, but you can use the 2.4 series by checking out that branch.

git clone https://github.com/sadsfae/ansible-elk
cd ansible-elkgit checkout 2.4

If you have issues or find bugs I’ll be maintaining the github repository and adding more functionality occasionally.  Feel free to comment below or on the github repo by filing an issue.

Video Demo
Below is a video demonstration of the Ansible automation in action.

About Will Foster

hobo devop/sysadmin, all-around nice guy.
This entry was posted in open source, sysadmin and tagged , , , , , , . Bookmark the permalink.

9 Responses to Automate Deployment of the ELK/EFK Stack with Ansible

  1. How do you scale that and ensure the high availability ?

    Like

    • Will Foster says:

      How do you scale that and ensure the high availability ?

      That’s a good question, but one I’d leave up to the operator to decide for themselves, my Ansible playbook doesn’t really cover that scope. It’s fairly easy to scale Elasticseach however, since it uses shards you can simply bring up another node with support for primary and replica shards.

      On the logging backend, fluentd is also provided as an option and some folks have found it easier to scale/HA fluentd over logstash however they both can be scaled and setup for proper HA with some additional modification using a load balancer and perhaps Redis.

      I hope this helps.

      Like

  2. elk_learner says:

    Do I have to configure elasticsearch separately to listen on network?
    I set es_listen_external to true. Does this configure only firewall and not elasticsearch??

    Like

    • Will Foster says:

      Hey there, es_listen_external: true will just setup iptables rules to allow for incoming connections to TCP/9200. By default ES will listen on 0.0.0.0:9200 so that’s all that should be required.

      Like

  3. Canh says:

    Does the ES setup has configuration for swap/swappiness and max_map_count?

    Thank you for this amazing setup.
    – Canh

    Like

    • Will Foster says:

      Hey Canh, no it does not configure this. I could add it if folks want to see it, just file an issue on the Github.

      Like

      • Canh says:

        Will, yes, I just filed an issue on the Github. I would love to have them to be configured.

        If I run Logstash and Elasticsearch separately on different instances. Of course, I will have JVM settings for running Elasticsearch, but should I be worry about Logstash? Does it need JVM settings like Elasticsearch does?

        Thanks in advance,
        Canh

        Like

      • Will Foster says:

        If I run Logstash and Elasticsearch separately on different instances. Of course, I will have JVM settings for running Elasticsearch, but should I be worry about Logstash? Does it need JVM settings like Elasticsearch does?

        Hi Canh, not really so long as you leave enough memory for it in an all-in-one. Generally logstash isn’t as demanding as ES but your mileage may vary, you could set the min/max heap size to be the same to avoid fragmentation overhead but usually I leave it alone, even on larger production deployments.

        Like

  4. Canh says:

    Hi Will, Thanks for your advice. It is really helpful to me, I highly appreciate it. Thanks!

    Like
