Block Advertising on your Network with Pi-hole and Raspberry Pi

I recently setup Pi-hole on an existing Raspberry Pi running CentOS on my home network to serve as my DNS server and block advertising and unwanted domains for all internet-connected devices.  I’m still using an ASUS router with Shibby Tomato firmware for routing, DHCP and private VLANs so I had to make a few changes.  This is how I got up and running along with some performance tuning.



What’s Pi-Hole?
Pi-hole is a set of software packages that provide filtering and advertisement blocking for all internet services on your network.  It alleviates what might traditionally be done via adblockers or per-device software because it blocks things at the DNS level.  It uses dnsmasq, lighttpd, FTL and some other packages to tie all this together into a nice, easy-to-use web interface.  Pi-hole can be installed on any existing Linux device or VM.

Pi-hole utilises several well known and trusted internet blacklists and keeps them up-to-date.  At the DNS level it can then thwart unwanted ads, malware domains and other unsavoury internet denizens from appearing on any of your internet devices or computers.

This video gives a decent overview.

How It Works
You can have pi-hole handle your DNS, DHCP or both.  On the LAN side it uses dnsmasq as a caching DNS server where filtering/discarding happens.  Upstream lookups are performed by choosing one of the several free options like Google DNS, OpenDNS, Level3 and others or you can enter your own.

For my purposes I wanted Pi-hole to perform bare-minimum caching DNS duties as my Tomato router does a good enough job of handling DHCP and address assignment.  I am also using private, isolated VLANs for devices that are less than trustworthy like Smart TVs.

Update: 2018-04: If you want to setup Pi-Hole as a Docker container and have it “on the go” on your laptop via local DNS scroll to the bottom of this guide.

Getting Started – My Network
I am running pi-hole on an existing Raspberry Pi for DNS services, but this could be any host or VM inside your network.  I have DHCP services handled by my router.  Once setup I just needed to point static DNS from my Tomato router to use the new pi-hole service.

Install Pi-Hole
I am going to assume you’re using a Linux-based device like a Raspberry Pi running on CentOS but any VM or host will work.  The official instructions tell you to curl a script and pipe it to bash as root but we’re not going to do that.

Install Git and EPEL Repository for ARM

yum install git -y

Next, ensure you have the EPEL repository installed.  On ARM devices like the Raspberry Pi you can use the snippet below to enable it.

cat > /etc/yum.repos.d/epel.repo << EOF
[epel]
name=Epel rebuild for armhfp
baseurl=https://armv7.dev.centos.org/repodir/epel-pass-1/
enabled=1
gpgcheck=0

EOF

Update to PHP 7.x If you’re on CentOS7
CentOS currently ships with PHP 5.6 which is quite old, to take advantage of additional language support and better security as well as to curb some possible bugs you should also update to PHP7.  There’s a current pull request on the Pi-hole Github to get this in place by default but for now you should upgrade on your own.

On Raspberry Pi / ARM there are some repos available here:

cat > /etc/yum.repos.d/php72-testing.repo << EOF
[php72-testing]
name=Remi php72 rebuild for armhfp
baseurl=https://armv7.dev.centos.org/repodir/community-php72-testing/
EOF

Now install the PHP72 versions of what will be required from the Pihole installer.

yum install php-cli php-json php php-common php-pdo

If you’re using CentOS7 for x86_64 or non-ARM then just use the Remi PHP repositories here.  If you’re not using any of these consult your distribution documentation.

Now you’re ready to clone pi-hole and run the automated installation script.

Clone and Run the Installation Script

git clone --depth 1 https://github.com/pi-hole/pi-hole.git Pi-hole
cd "Pi-hole/automated install/"
sudo bash basic-install.sh

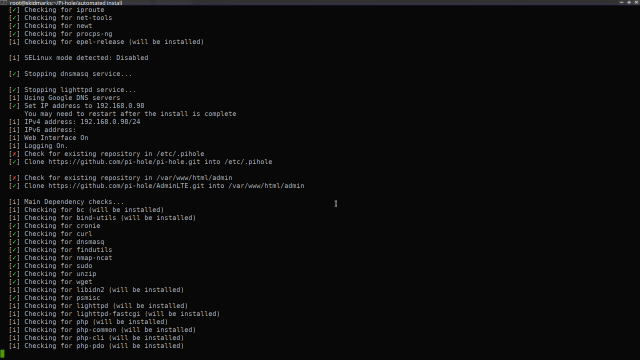

The automated installation script will now execute.

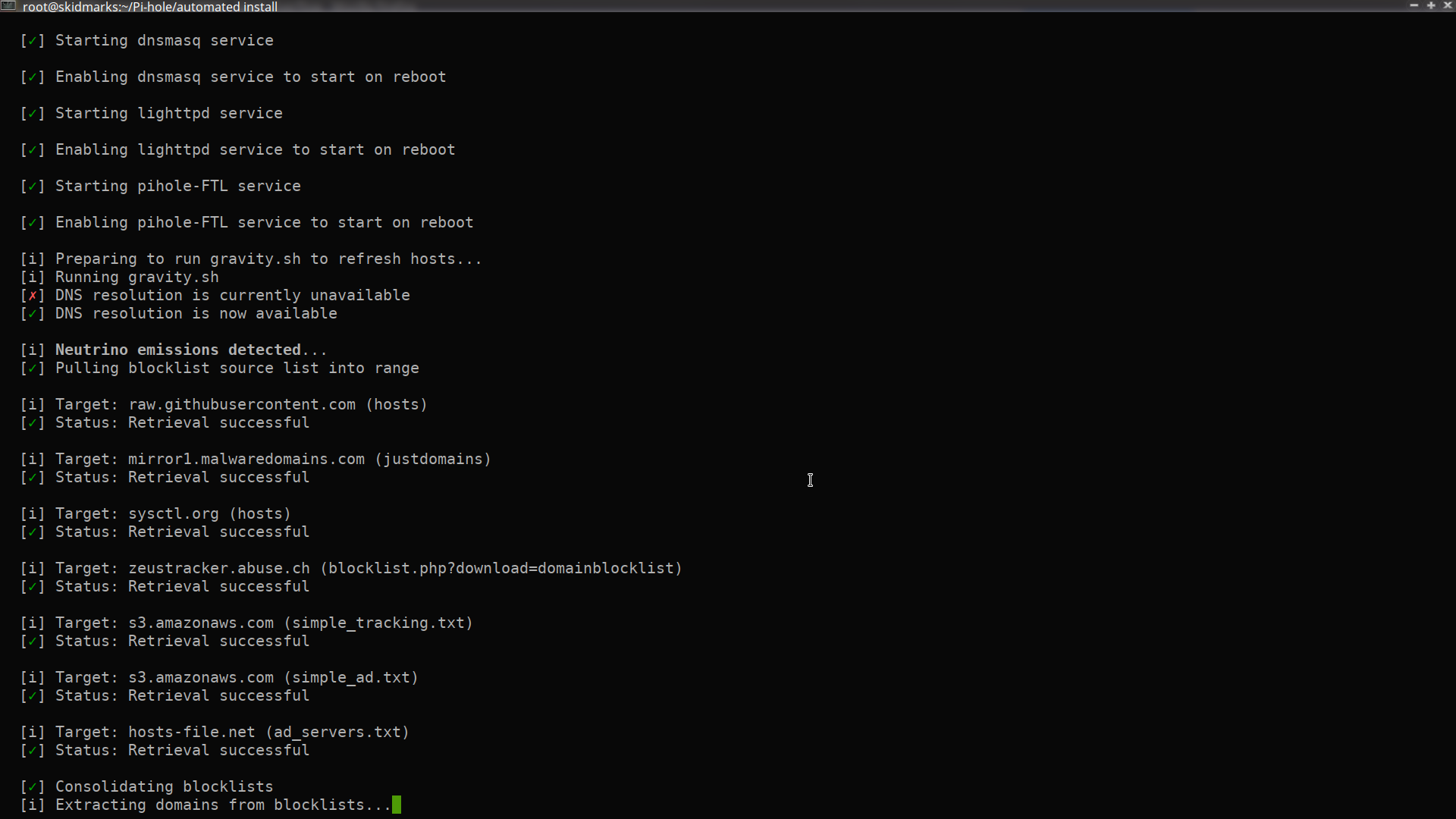

After any missing packages are installed it will setup and configure itself and you’ll be presented with configuration details.

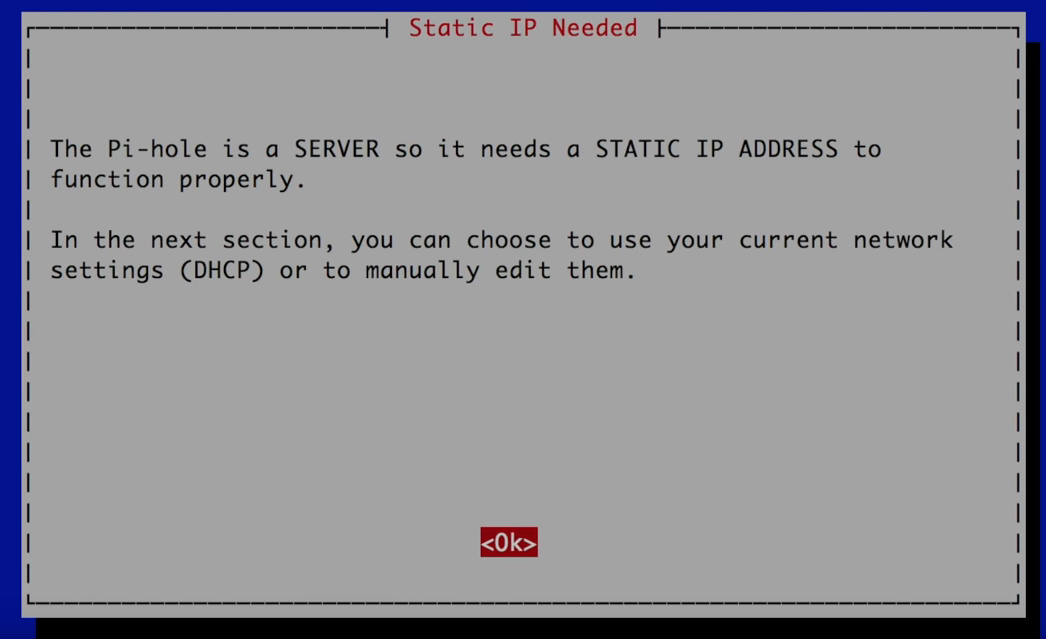

You’ll then be presented with an ncurses configuration guide, the defaults are just fine.

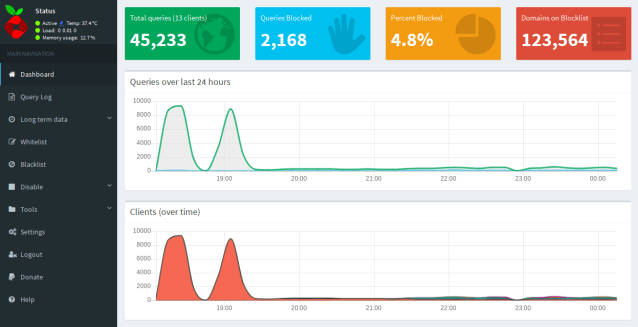

At this point you should be able to access http://your-pi-hole-machine/admin/index.php to access the web interface.  Be sure to copy the web GUI admin password printed on the screen and keep it somewhere safe.  You may need to manage your own firewall rules here, so make sure that UDP/53 (DNS) and TCP/80 (HTTP) are open on your Pi-hole host.

Limit Writes to Solid State Devices
It’s recommended to lower the DBINTERVAL setting for the FTL service from the default of 1second to 60 seconds to limit the frequency of database writes.  This should prolong the life of your SD, SSD, M2, or similar solid state device if you’re using one.

cat > /etc/pihole/pihole-FTL.conf << EOF
# Lower DB writes for SD card life to 60
# https://wiki.archlinux.org/index.php/Pi-hole#FTL
DBINTERVAL=60

EOF

Now restart the FTL service to take effect.

systemctl restart pihole-FTL

Resolving Internal Domain Names
If you’re not using Pi-hole for managing both DHCP and DNS then you’ll want to maintain a static mapping of local (LAN) ip addresses to hostnames for local resolution.

Pi-hole needs this so you will show hostnames instead of local ip addresses in your query logs, dashboard and visualizations.

You can do this with the /etc/hosts file on your Pi-hole host.

192.168.0.22   localwebserver01
192.168.0.23   localwebserver02
192.168.0.24   mysketchytelevision

Tuning dnsmasq for Higher Traffic
Before you point your router or clients to start using pi-hole for your DNS you may want to tune settings for more demanding networks or a larger amount of clients.  I added the following to my /etc/dnsmasq.d/02-custom-settings.conf.

cat > /etc/dnsmasq.d/02-custom-settings.conf << EOF
#### EDIT SETTINGS
dns-forward-max=5096
min-cache-ttl=300
rebind-domain-ok=/plex.direct/
#### END EDIT

EOF

Let me explain these above:

  • dns-forward-max = this increases the max DNS forward limit, if you have a rather busy internal network you will easily hit the limit of 150 which in my opinion is way too low.  1024+ is more realistic.
  • min-cache-ttl = This extends the minimum time-to-live settings for cached lookups and ensures all DNS lookups will be cached for at least 300 seconds.  This is a very useful setting and lets you take full advantage of caching nameserver capabilities.
  • rebind-domain-ok = this lets you specify domains where DNS rebind support is needed like the Plex Media Server.  If this doesn’t mean anything to you then you probably don’t need it.

Apply the new tunings by restarting the dnsmasq service.

systemctl restart dnsmasq

Test DNS resolution on another system in your network, you should quickly get responses back from dig requests

dig @192.168.0.98 hobo.house

If all is clear now it’s time move your DNS to pi-hole.  If you specify DNS servers for each of your clients then you just need to update them to point to your newly setup device.

This article explains how to switch to pi-hole DNS for your devices or router.

At this point you’re done, skip past the Tomato section if this doesn’t apply to you for Pi-hole usage, common commands and useful tips.

Pointing your ASUS Tomato Router to Pi-Hole for DNS
I am using an ASUS Black Knight router running the Shibby Tomato firmware, which I will use for demonstration purposes.

First I need to point it to use my new pi-hole DNS (192.168.0.98 in my case)

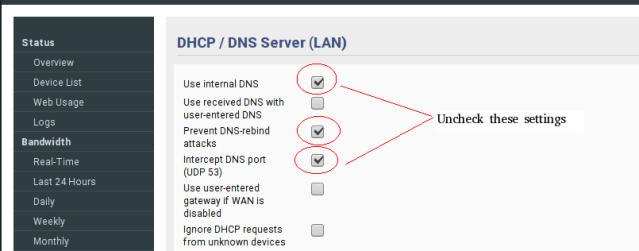

Next, I need to turn off the existing DNS settings that Shibby Tomato previously managed for me.

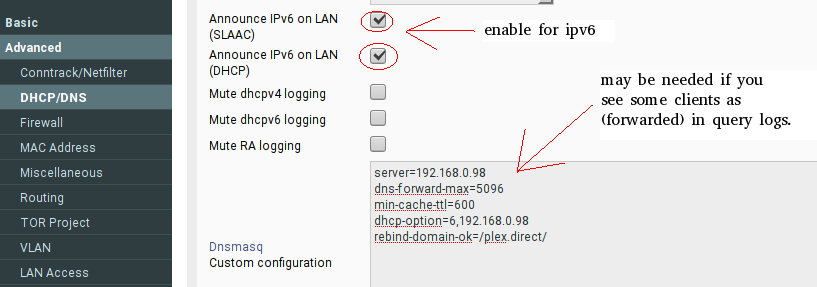

Additionally you might need these settings for dnsmasq.conf within Tomato to ensure that all wireless clients obtain Pi-hole DNS via Tomato DHCP if you see (forwarded) in query logs.

If you see the following in Pi-hole query logs then you need to set the below setting

Besides setting the below dnsmasq Tomato settings I also enabled the two SLAAC and DHCP IPv6 options below.

Here are the dnsmasq lines for easy copy/paste, you should substitute my 192.168.0.98 for your Pi-hole address.

server=192.168.0.98
dns-forward-max=5096
min-cache-ttl=600
dhcp-option=6,192.168.0.98

Lastly I need to add a static route for any private, isolated VLANS I am managing with Tomato Shibby.  In my case I was using 172.16.0 for my private VLAN but I use 192.168.0 networks for everything else.  This is needed to allow DNS traffic between the normally-isolated networks.  You can disregard this step if you don’t have such a setup.

Without the static route I would never be able to route 172.16.0 –> 192.168.0.98 (Pi-hole) for DNS traffic.

Testing and Using Pi-Hole

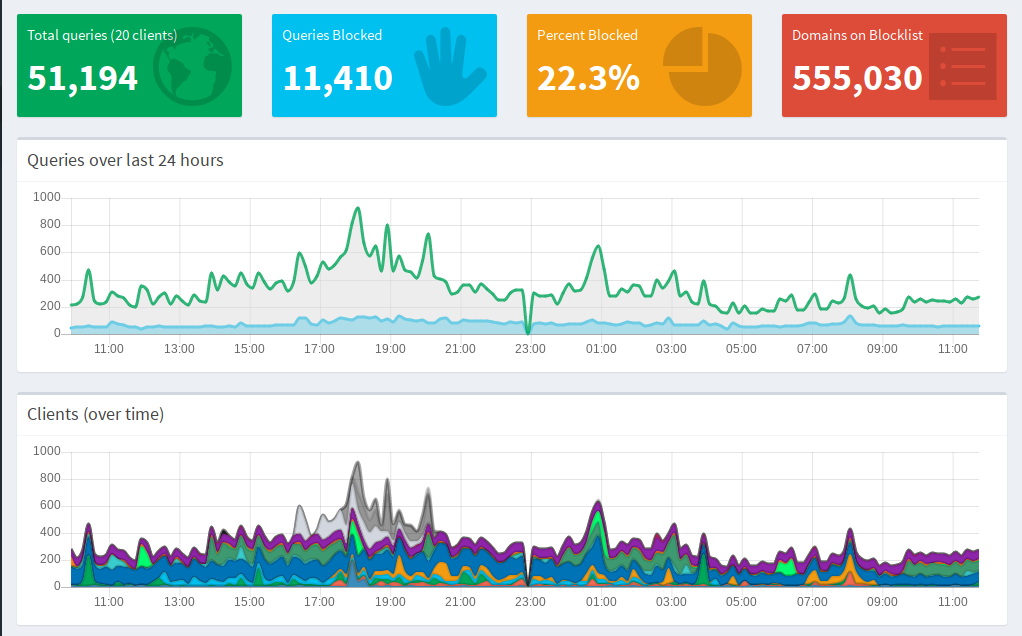

At this point clients in your home network, including all wireless clients should be immediately benefiting from the ad, malware and bad-people-on-the-internet filtering provided by pi-hole.  You can access the web UI and note stats, percentage of traffic , statistics per client, blocks, common domains and other useful information.

Note that the Percent Blocked are DNS queries to/from undesirable locations like known advertising, beacons, trackers which would normally denote some level of accompanying network traffic – it’s not actual network traffic blocked.

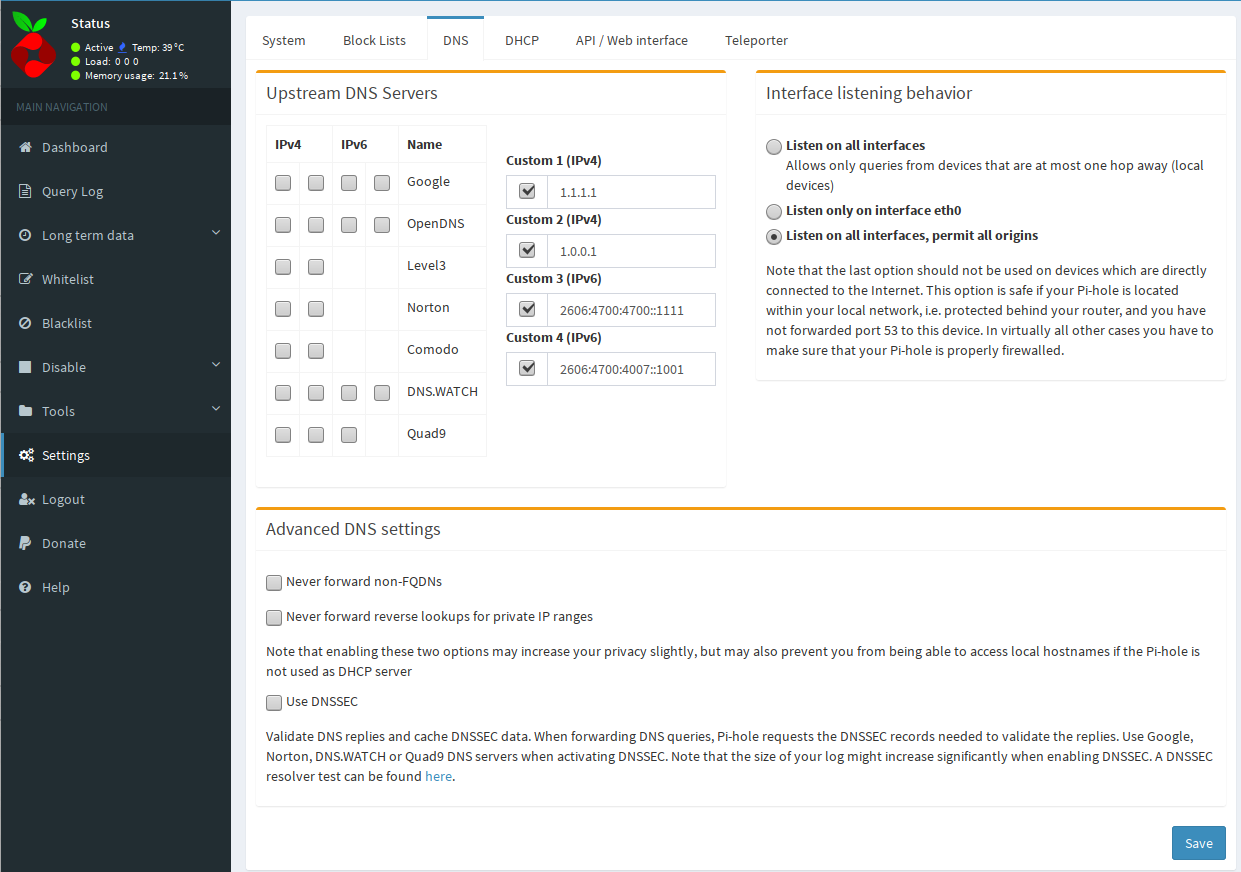

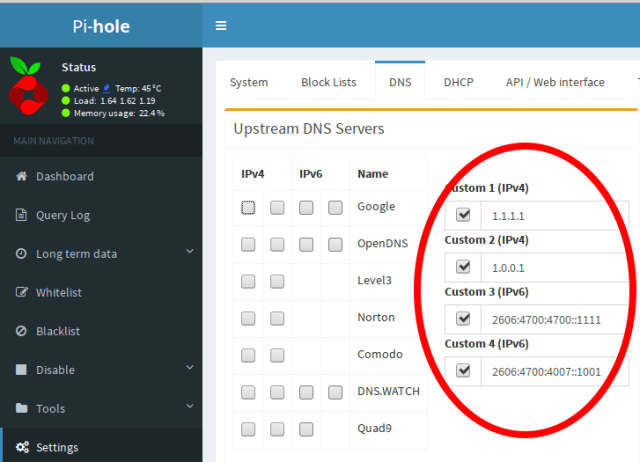

For reference these are the DNS settings I have set in the UI.  You can just as easily manage these in /etc/dnsmasq.d/01-pihole.conf via SSH and restarting the dnsmasq service.

Note: I am now using the Cloudflare DNS 1.1.1.1 / 1.0.0.1 and their IPv6 servers in lieu of Google DNS or others.

Here they are for your convenience:

IPv4 DNS #1 -> 1.1.1.1
IPv4 DNS #2 -> 1.0.0.1
IPv6 DNS #1 -> 2606:4700:4700::1111
IPv6 DNS #2 -> 2606:4700:4007::1001

I have opted for listening/permitting all origin traffic as my Pi-hole is firewalled behind my Tomato router and I need to accept multi-hop origin requests from private VLANs from within my network. Most people can use “Listen only on interface eth0” for example.

There are also options for blacklisting and whitelisting domains, you can access this in the UI settings.

Updating Pi-Hole

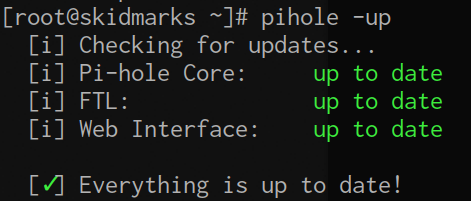

You can run the supplied pihole script to update it over SSH – this will update the core version if there is an update available.

pihole -up

Pi-hole already sets up a cron job in /etc/cron.d/pihole however which updates the ad sources once a week, the above is just for updating the released version.  You can also run this inside the web interface.

Pi-Hole CLI
You can also issue common commands as needed via SSH, check pihole -h for more info.

Blacklisting domain(s)

pihole -b unwantedsalescrap.net moreunwantedjunk.com

White listing domain(s)

pihole -w myfriendsblogthing.org thisotherblog.net

Blacklisting wildcard domains, e.g. any url and associated subdomains.
This is for single domains only.

pihole -wild reallyirritatingmarketing.com badpeople.org

Querying the ad lists domains.  You can also pass -exact to match more precisely.

pihole -q domain.match.here

Changing the web admin password.  If you leave the new password blank it will simply not prompt for one.

pihole -a -p

You can tail DNS queries that come in as well, with color indication of what’s new, cached or blocked.  Use control+c to quit.

pihole -t

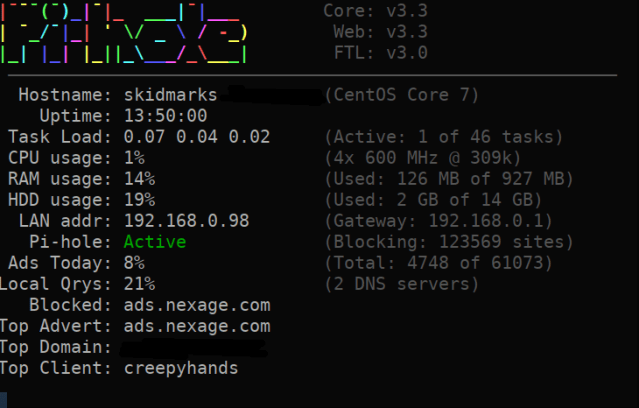

Pi-hole also comes with a nice top-like chronometer utility

pihole -c

Adding More Block Lists
While you can use either the pihole -b (blacklist) or pihole -wild (wildcard domain block) for blocking single domains the most efficient way to protect your network is through domain block lists.

Domain block lists are cultivated 3rd party lists that contain many many domains that are known to be malicious or contain unwanted advertising and trackers.  When you add block lists your pi-hole will query them and keep your block lists updated via cron.

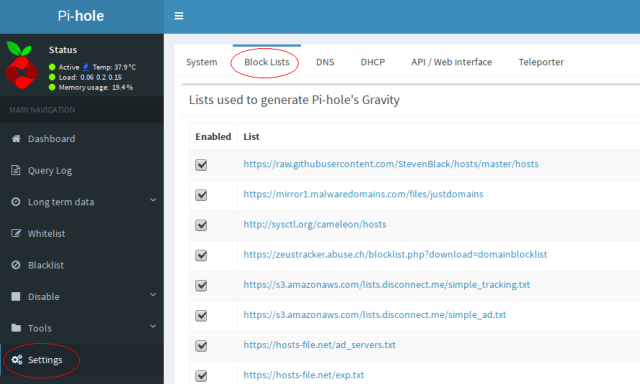

I’ve found a great source of additional block lists over at the cryptoaustralia.org blog as well as wally3k.  You can easily add/manage block lists in the web UI under Settings -> Block Lists.  Enter each block list one at a time and hit save, click save and update when you are finished and it will regenerate.

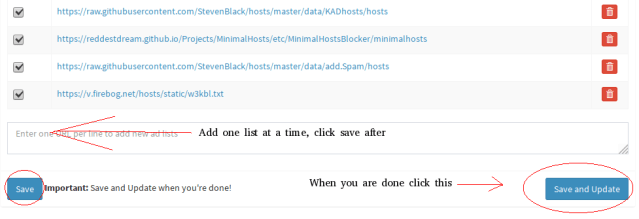

You can also manage them via the CLI by adding entries new sources to 3rd party blocklists in /etc/pihole/adlists.list and then tell pi-hole about it.

pihole -g

Here are the additional 3rd party block lists I am using, they’ve worked for me with no issues and block around 555,000 domains.  Out of the box Pi-hole should block around 123,000 domains as of typing this.

Below you can paste this and it will add all my blocklists to your Pi-hole

pihole tee -a /etc/pihole/adlists.list >/dev/null << EOF
### hobo.house list
https://raw.githubusercontent.com/StevenBlack/hosts/master/hosts
https://mirror1.malwaredomains.com/files/justdomains
http://sysctl.org/cameleon/hosts
https://zeustracker.abuse.ch/blocklist.php?download=domainblocklist
https://s3.amazonaws.com/lists.disconnect.me/simple_tracking.txt
https://s3.amazonaws.com/lists.disconnect.me/simple_ad.txt
https://hosts-file.net/ad_servers.txt
https://hosts-file.net/exp.txt
https://hosts-file.net/emd.txt
https://hosts-file.net/psh.txt
https://v.firebog.net/hosts/Airelle-hrsk.txt
https://v.firebog.net/hosts/Shalla-mal.txt
https://ransomwaretracker.abuse.ch/downloads/RW_DOMBL.txt
https://ransomwaretracker.abuse.ch/downloads/LY_C2_DOMBL.txt
https://ransomwaretracker.abuse.ch/downloads/CW_C2_DOMBL.txt
https://ransomwaretracker.abuse.ch/downloads/TC_C2_DOMBL.txt
https://ransomwaretracker.abuse.ch/downloads/TL_C2_DOMBL.txt
http://www.networksec.org/grabbho/block.txt
https://isc.sans.edu/feeds/suspiciousdomains_Medium.txt
http://someonewhocares.org/hosts/hosts
https://s3.amazonaws.com/lists.disconnect.me/simple_malvertising.txt
http://www.joewein.net/dl/bl/dom-bl.txt
https://raw.githubusercontent.com/crazy-max/WindowsSpyBlocker/master/data/hosts/win10/spy.txt
https://v.firebog.net/hosts/static/SamsungSmart.txt
https://gist.githubusercontent.com/anudeepND/adac7982307fec6ee23605e281a57f1a/raw/5b8582b906a9497624c3f3187a49ebc23a9cf2fb/Test.txt
https://raw.githubusercontent.com/StevenBlack/hosts/master/data/KADhosts/hosts
https://reddestdream.github.io/Projects/MinimalHosts/etc/MinimalHostsBlocker/minimalhosts
https://raw.githubusercontent.com/StevenBlack/hosts/master/data/add.Spam/hosts
https://v.firebog.net/hosts/static/w3kbl.txt
EOF

Now you’ll want to reload Pi-hole with the new list:

pihole -g

You may want to keep an eye on your DNS queries the first 24hours or so to make sure you’re not blocking any false positives.  You can unblock/whitelist domains with the pihole CLI (it’s reported doing this via the UI doesn’t always work currently).

Domains I Whitelist Manually
There were a few I had to white list for example:

pihole -w youtu.be opensubtitles.org www.opensubtitles.org t.co

Update: here are a few more I had to add, wrapped for your convenience.  Your mileage here may vary depending on the services you use.

pihole -w pubsub.plex.tv plugins.plex.tv chapterdb.plex.tv cloudfront.net \
plex.direct csi.gstatic.com dl.opensubtitles.org speedvideo.net ton.twimg.com \
twimg.com chapterdb.plex.tv tinyurl.com bit.ly ton.twimg.com dropbox.com \
pubsub.plex.bz fonts.gstatic.com assets.adobedtm.com www.googletagmanager.com \
links.services.disqus.com ump.plex.tv meta.plex.tv goo.gl

Domains I Block Manually
On that same note, here are domains I’ve manually blacklisted after a few weeks of watching my query logs.  These either came from my hawkish observations or known telemetry domains, one or two even traced back to questionable entities located in the Washington, D.C. area.  Some of these are just downright ridiculous, come on Microsoft ..

pihole -b dxp.baidu.com hmma.baidu.com pasta.esfile.duapps.com \
neweegg.net config.a-mo.net nrc.tapas.net xpu.samsungelectronics.com \
upu.samsungelectronics.com dns.msftncsi.com bn2wns1b.wns.windows.com \
a-0001.a-msedge.net msnbot-65-52-108-90.search.msn.com a-0011.a-msedge.net \
bn2ap002.device.ra.live.com a.ads1.msn.com a.ads2.msn.com ad.doubleclick.net \
adnexus.net adnxs.com ads.msn.com ads1.msads.net ads1.msn.com \
az361816.vo.msecnd.net az512334.vo.msecnd.net ca.telemetry.microsoft.com \
cache.datamart.windows.com choice.microsoft.com corp.sts.microsoft.com \
choice.microsoft.com.nsatc.net choice.microsoft.com.nstac.net \
choice.microsoft.com.nstac.net compatexchange.cloudapp.net corp.sts.microsoft.com \
corpext.msitadfs.glbdns2.microsoft.com cs1.wpc.v0cdn.net \
db3wns2011111.wns.windows.com df.telemetry.microsoft.com \
diagnostics.support.microsoft.com fe2.update.microsoft.com.akadns.net \
fe3.delivery.dsp.mp.microsoft.com.nsatc.net feedback.microsoft-hohm.com \
feedback.search.microsoft.com feedback.windows.com i1.services.social.microsoft.com \
i1.services.social.microsoft.com.nsatc.net msnbot-207-46-194-33.search.msn.com \
oca.telemetry.microsoft.com oca.telemetry.microsoft.com.nsatc.net \
pre.footprintpredict.com preview.msn.com rad.msn.com \
redir.metaservices.microsoft.com reports.wes.df.telemetry.microsoft.com \
settings-sandbox.data.microsoft.com settings-win.data.microsoft.com \
settings.data.microsof.com sls.update.microsoft.com.akadns.net spynet2.microsoft.com \
spynetalt.microsoft.com sqm.df.telemetry.microsoft.com sqm.telemetry.microsoft.com \
sqm.telemetry.microsoft.com.nsatc.net ssw.live.com statsfe1.ws.microsoft.com \
statsfe2.update.microsoft.com.akadns.net statsfe2.ws.microsoft.com \
survey.watson.microsoft.com telecommand.telemetry.microsoft.com \
telecommand.telemetry.microsoft.com.nsatc.net telemetry.appex.bing.net \
telemetry.microsoft.com telemetry.urs.microsoft.com view.atdmt.com \
v10.vortex-win.data.microsoft.com vortex-sandbox.data.microsoft.com \
vortex-win.data.microsoft.com vortex.data.microsoft.com watson.live.com \
watson.microsoft.com watson.ppe.telemetry.microsoft.com \
watson.telemetry.microsoft.com watson.telemetry.microsoft.com.nsatc.net \
wes.df.telemetry.microsoft.com win10.ipv6.microsoft.com adservice.google.com \
ads.aws.viber.com stats.appsflyer.com adservice.google.ie referrer.disqus.com \
browser.pipe.aria.microsoft.com tracking.campaign-tracking-service.placelocal.com \
primoitaliablob.blob.core.windows.net srv.dc-1.net \
wdcpeurope.microsoft.akadns.net wdcp.microsoft.akadns.net

Wildcard Domains I Block Manually
Additionally I also started blocking these wildcard domains as they were advertisers, trackers or just sketchy connections from China that showed up with an older Android tablet I use as an alarm clock.

pihole -wild bidr.io 88-f.net mythings.com

I will be keeping all these lists updated

First Impressions
Right away I saw an increase in general responsiveness across all my devices, most likely due to the caching name server settings.  I expect a further increase in responsiveness soon due to blocking many of the known advertising sources.  The graphing, logging and dashboard information is easy to read and inspect.

I really like the idea of this project and how it ties everything together. Ad-blocking using 3rd party block lists isn’t a new concept but packaging this into an easy-to-use solution that works on any existing machine using OSS tools is really useful.

In upcoming versions the FTLDNS or “Faster than Light DNS” should make an appearance which adds more direct hooks into dnsmasq and speed things up even more from a user perspective, though it’s already pretty snappy.

Performance and Usage
A few hours after implementing Pi-hole around 10% of the DNS lookups on my home network showed to be attempts by advertisements, trackers and other undesirables, this is now curbed.  I even managed to blacklist some additional domains from China (baidu.com) I noticed in the query log that I’m not sure had any reason to be talking to my network.  It is also very lightweight to run, consuming around 9mb of memory and a very nominal amount of CPU on the Raspberry Pi2 and CentOS7.

Whitelisting not Working via Web UI
As of Pi-hole 3.3 there are some known issues with whitelisting domains via the web interface, the workaround for this is to remove the whitelist via the web interface and re-add it via pihole -w domain.name.here.  This does not affect all users, only some due to a locale issue and should be fixed soon.  This did not affect me on CentOS7 / Raspberry Pi2 in the GMT timezone.

Pihole-FTL Service 100% or Not Starting
If you have a rather large /var/log/pihole.log file (>=800mb) sometimes it’s too large for the pihole-FTL service to parse on lower-end hardware.  The result is that your web UI statistics and query list cannot be rendered.

-rw-r--r-- 1 nobody root 888M Jul 30 00:18 pihole.log

Usually this file should be rotated, otherwise you can remove it and restart the pihole and it should resolve itself.

Statistics 24 Hours after Install
After 24hours I started to see the real DNS blocking imprint with 20-some-odd devices on my home network, a few friends over contributing to the fray and a full day of working remotely.  I also added a dozen more block lists to the mix, pushing my block domains up to around 555,000.

Upwards of 22% of the DNS lookups were blocked which normally would have incurred some additional traffic overhead.  CPU and memory usage stayed about the same, it’s pretty lightweight.  General device network responsiveness to queries continued to be snappier than they were before it was deployed.

Containerized Pi-hole on the Go
You can also install Pi-hole as a docker container and then set it up on your laptop and set the Pi-hole container as your DNS.  This works pretty well, and supports any platform that can run Docker containers.  Credit goes to Kayvan Sylvan for providing the script and idea for this.

Here’s a quick and dirty guide to get this going, note that I’m not a docker expert so there may be a better way – if so please leave me a comment.

Install and Setup Docker
First you need docker installed and running on your system

dnf install docker wget -y

Set docker to auto-start on boot and start the docker container service.

systemctl enable docker
systemctl start docker

Run the Pihole Docker Container
Now you’re going to pull down and run the latest docker pihole container.  We’re going to run it in daemon mode and restart on boot.

docker run -d --name pihole --restart=always diginc/pi-hole:debian

This will take about 20-30seconds to start up, you’ll want to query and wait for it to be fully instantiated before any further customization.  You can query this via docker ps.  You’re looking for “starting” status to turn into “healthy”

[root@oberschnutz ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2212eaa2d5ff diginc/pi-hole:debian "/s6-init" 27 seconds ago
Up 26 seconds (health: starting) 53/tcp, 80/tcp, 53/udp pihole

Checking again in a 20 seconds we see it’s up and running now

[root@oberschnutz ~]# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
2212eaa2d5ff diginc/pi-hole:debian "/s6-init" About a
minute ago Up About a minute (healthy) 53/tcp, 80/tcp, 53/udp pihole

Run Post-Setup Script
Right now Pi-hole is running.  If you don’t care about adding additional blocklists you can just point your local /etc/resolv.conf to use the Pi-hole container IP address or wherever you set your name resolution to use it.  For me that was 172.17.0.2 but see command below to check it.

At any point you can access a console in your docker container via:

docker exec -ti pihole bash

We’re going to proceed with adding more blocklists however and further customization.  Pull down the custom setup script and run it.  This will add additional block lists and remove the web admin password since you’re running it locally.

wget https://gist.githubusercontent.com/sadsfae/ec07f4b227b91ccd9f13fec2902d67c7/raw/36f11e098eb07dad5c1310af70ae1341a5f11a56/pihole-post-config.sh

Now run it against the container.

sh +x ./pihole-post-config.sh

Point Local DNS to your Pihole Container
You’re going to need to first obtain the IP address your container is running with so you know what to set as your nameserver as well as the web interface.

docker container inspect pihole | grep IPAddress
 "SecondaryIPAddresses": null,
 "IPAddress": "172.17.0.2",

Now you can access the web interface at http://IP.ADDRESS.OF.CONTAINER/admin – for me this was http://172.17.0.2/admin

I took this opportunity to point DNS to use CloudFlare’s new IPv4 and IPv6 addresses for external lookups.

Next do a quick dig test to make sure it’s working correctly.

dig @172.17.0.2 hobo.house

If this returns a response you’re in business, now you can set your DNS to this.

nameserver 172.17.0.2

To make this persistent where connecting to other wifi or wired networks won’t change this you’ll need to use the chattr command to make it immutable.

chattr +i /etc/resolv.conf

NOTE: This may break VPN connections which need to impose their own internal DNS – in those cases you’ll want edit your DNS after you’ve connected to place the Pi-hole DNS back in your /etc/resolv.conf after getting the VPN DNS entry.

If your VPN client provides pre and post scripting (OpenVPN CLI can do this) it’s better to have this happen automatically (chattr -i / connect / re-add pi-hole DNS / chattr +i ) but here’s how you’d do it manually.

chattr -i /etc/resolv.conf

Now connect to your VPN.  After connecting you can add it back:

echo "nameserver       172.17.0.2" >> /etc/resolv.conf

Now set your /etc/resolv.conf back to being immutable

chattr +i /etc/resolv.conf

At this time I don’t believe NetworkManager supports pre and post connection for VPN clients but the OpenVPN cli can do this for you.

Caveat: Wildcard Blocking is Broken using Fedora Docker Repositories
Note: I have noticed that adding wildcard blocklists will break Pi-hole running in the container, either via the UI or pihole -wild.  I haven’t dug into this in-depth but it does break the running DNS service.  This happens for me anyway on Docker 1.13 via the Fedora 27 repositories.  I’m told this isn’t the case with the latest docker-ce packages from Docker.

If this happens you can either remove the offending dnsmasq wildcard config or simply kill the container and pull it down again and re-run the setup script.

Easy Fix

docker exec -ti pihole rm -f /etc/dnsmasq.d/03-pihole-wildcard.conf
docker exec -ti pihole -g

Or the hammer approach

docker rm -f pihole

Now re-run the post-setup script above.  If you want wildcard functionality you should use the Docker-ce repos instead until this is fixed.

Docker Power Usage on Laptops
I haven’t seen a whole lot of power usage from running a Pi-hole docker container, on my Lenovo x270 it looks to be minimal – around 173 mW or 0.17 W.

73.8 mW 366.4 µs/s 14.8 Process [PID 3508] pihole-FTL no-daemon
100 mW 0.0 pkts/s Device nic:docker0
357 µW 72.8 µs/s 2.1 Process [PID 1154] /usr/bin/dockerd-current
0 mW 6.6 µs/s 0.00 Process [PID 3584] /usr/bin/dockerd-current

Pi-Hole Container Performance
The Pi-hole container is pretty lightweight, on average using aronud 50 MB of memory or around 0.36% of my 16GB of memory on my Lenovo x270 running Fedora 27.

You can run query the performance at any time via:

docker stats pihole

About Will Foster

hobo devop/sysadmin, all-around nice guy.
This entry was posted in open source, sysadmin and tagged , , , , , , , , , , , , , , , , . Bookmark the permalink.

29 Responses to Block Advertising on your Network with Pi-hole and Raspberry Pi

  1. Great stuff! Thanks.

    Like

  2. Igor Bondar says:

    Hello Will. Did you compare Pi-Hole and Shibby’s embedded Adblock?

    Like

    • Will Foster says:

      Hey Igor, I did see the Shibby adblock feature in later versions (I’m running an older pre-multi WAN build so it’s not present in mine) but I did not try it yet.

      Like

      • Igor Bondar says:

        Any ideas how to compare?

        Like

      • Will Foster says:

        Yes, I will add something soon about it, a friend of mine has the newer version of Tomato / Shibby so I can do a good comparison. Basically it does the same thing but without the graphing and snazzy interface/dashboard. I am uncertain if the whitelist / blacklist / wildcard features are there either.

        Like

  3. Igor Bondar says:

    As I understand, adding your additional 3rd party block lists to Tomato adblock + enable dnsmasq logs + setup AdminLte to separate port of webserver will convert Tomato router to PiHole fork or something like that. But I don’t know how to do it :)

    Like

    • Will Foster says:

      Aye, I believe this would work just as well. In my situation my Asus RTN66-U & Shibby Tomato is doing a lot already and I had a mostly idle Raspberry Pi2 so just making a dedicated Pi-Hole made more sense for me. I know of a few folks running Pi-hole inside a container on FreeNAS or just a lightweight VM too so you don’t necessarily need a Raspberry Pi. If your shibby tomato is underutilized you might be better off making that into a sort of Pi-hole solution?

      Like

  4. ksylvan says:

    Hi Wil. The first two lines of your additional ad block lists are four sources mashed together:

    https://hosts-file.net/exp.txthttps://hosts-file.net/emd.txt
    https://hosts-file.net/psh.txthttps://v.firebog.net/hosts/Airelle-hrsk.txt

    Please fix!

    Like

  5. dzfz says:

    Most usefull and educationnal i ve seen. Cheers

    Like

  6. tball78 says:

    Great post! Initially pihole seemed to have a negative performance impact on my home network. After following this procedure and making the tweaks to the conf files, everything works great now. Very detailed and helpful post. Thanks for sharing.

    Like

  7. Garrett says:

    Comprehensive lists can be found at:

    https://tspprs.com/

    Like

  8. Dave says:

    Hi Will
    That is GREAT info! Thanks for that.
    I have a thing….I have a guest VLAN/Wi-Fi on my Tomato router that normally cannot access my “stuff”, but I have had to open up the LAN Access to let the guests access the DNS. As Pi-hole is a docker container it shares the LAN IP address with a load of other containers that I do not want guests to have access to…….do you have any idea how to limit that access to only port 53?

    Cheers!
    Dave

    Like

    • Dave says:

      Actually….I think that I have managed to work it out:
      Get rid of the LAN Access rule and add these lines to the Firewall scripts:
      iptables -I FORWARD -i br1 -p tcp -d 192.168.10.12 –dport 53 -j ACCEPT
      iptables -I FORWARD -i br1 -p udp -d 192.168.10.12 –dport 53 -j ACCEPT

      That works and i cannot access a web site on the regular vlan from the guest Wi-Fi.
      Let me know if that sounds right please?

      Cheers!
      Dave

      Like

      • Will Foster says:

        Looks like I replied before I read your follow-up message. Yes, that should work even better as the LAN access rules really just correspond to bridge and iptables rules on the Tomato end anyway. That way you’re only specifying the access you need explicitly, that’s a better solution!

        Like

    • Will Foster says:

      Hey Dave, probably adding a route in Tomato like you have via LAN access is the first step, you could then try adding a custom iptables rule into Tomato to then allow only UDP/53 to that host for DNS queries and a following rule to DENY everything else (as iptables is read top-down) I would experiment with this. The FORWARD chain should catch this and do the right thing hopefully.

      Another option is to use an iptables rule on the pi-hole itself (or the Docker host? My container-fu is weak) to allow connections from only some IP addresses like your trusted hosts for web interface to it, but allow UDP/53 for everything else. Hope this helps.

      Like

  9. Shippy says:

    Will,

    Great details and best explanation with updates- was just browsing the Pihole Docker and Pi-hole.net page talking about FTLDNS etc. !

    I am looking to install Pihole Docker on my S905X/W Android Box 1G RAM, 8 G flash running LibreElec, currently on SD card.

    And I figured that besides using this Box with Pi-hole as media player, it could also be used as a secondary router serving DNS and adblocking for a few devices connected to it via WiFi AP ( the LibreElec WiFi tether setting in Kodi menu.)

    1. While I read through the Pihole Docker pages, it talked about a 164MB Debian build requiring 500MB RAM (RAM might be a typo- you say 50MB which sounds right.)

    So of course an Alpine base build instead of Debian will be much lighter, given the native 9MB Pihole install.

    Are there any guides to building Pihole starting from available Alpine ARM64 base containers?

    2. If I want to use the LE Box as mini router, would it make sense to have OpenWrt like QoS features (priority, anti buffer bloat- cake SQM)?

    How would I install above packages on this LE Box with Pi-hole container?

    LE has no package management, but Alpine base should behave much like OpenWrt “apt-get install package” with “apk install package” instead? Alpine is also a router based Linux distro like OpenWrt, just less known.

    Or, could the available Debian based Pihole container install QoS/other packages on itself via Dockerfile ADD, or package manager?

    3. So this continues from #2.

    Could we use the available Alpine base container to add to it OpenWrt packages via ADD in Dockerfile or other method, then run these OpenWrt capabilities in this custom Docker container atop the LE OS, in addition to the Pihole Docker?

    4. You mentioned DBINTERVAL which is good insight.

    What should the setting be for LibreElec/Pihole Docker running from emmc internal memory instead of from SD card?

    Any other config change suggestions for above?

    Keep it coming. Also read your autossh article, the answer to my dilemma about ssh login to devices behind proxies.

    5. Maybe another method would be vnc server on such devices since vnc should always be able to tunnel through firewalls?

    Like

    • Will Foster says:

      Hey @Shippy, I’m glad that you found this useful – comments below

      1. Are there any guides to building Pihole starting from available Alpine ARM64 base containers?
      2. If I want to use the LE Box as mini router, would it make sense to have OpenWrt like QoS features (priority, anti buffer bloat- cake SQM)?

      How would I install above packages on this LE Box with Pi-hole container?

      LE has no package management, but Alpine base should behave much like OpenWrt “apt-get install package” with “apk install package” instead? Alpine is also a router based Linux distro like OpenWrt, just less known.

      Or, could the available Debian based Pihole container install QoS/other packages on itself via Dockerfile ADD, or package manager?

      3. So this continues from #2.

      Could we use the available Alpine base container to add to it OpenWrt packages via ADD in Dockerfile or other method, then run these OpenWrt capabilities in this custom Docker container atop the LE OS, in addition to the Pihole Docker?

      I just based the Docker portions here on @Kayvan’s work, he’s probably a better person to ask about Docker-related sundries.

      I wouldn’t worry too much about QoS though if you’re interested maybe add it in later and compare as a baseline? Unless you have a very large network / many devices you’re really not going to see too much traffic overhead, more important than anything is maintaining a longer DNS resolve cache timeout.

      4. You mentioned DBINTERVAL which is good insight.

      What should the setting be for LibreElec/Pihole Docker running from emmc internal memory instead of from SD card?

      I would just keep things the same as if you had a normal SD card.

      Any other config change suggestions for above?

      Keep it coming. Also read your autossh article, the answer to my dilemma about ssh login to devices behind proxies

      Hey, cool glad to hear that you found that useful as well. I try to add anything here as usage expands or there’s new stuff to tweak.

      5. Maybe another method would be vnc server on such devices since vnc should always be able to tunnel through firewalls?

      Your mileage may vary but I never have Xorg / Runlevel 5 on anything unless it’s an active desktop. I can see this might be useful for Kodi but the Chorus 2 web interface / API is pretty good anyway for controlling it if you aren’t using the IOS/Android app and that’s a simple proxy through SSH if you’re totally remote.

      e.g. if my Kodi is on 192.168.0.22 and my home address is home.com

      ssh sadsfae@home.com -L 5902:192.168.0.22:8080

      Now I can access http://localhost:5902 and login to Chorus 2 web interface for Kodi/Libreelec (assuming you enabled it in settings up).

      I wouldn’t forward VNC anyway due to security risks, always tunnel it through SSH. You can run x0vncserver (vnc binary designed to run on the local :0 desktop connection) and just access that the same way you’d access Chorus above:

      ssh sadsfae@home.com -L 5903:192.168.0.22:5900

      Now point vnc client (Remmina is good for this) to localhost:5903

      You can start x0vncserver with the following command (if you trust your local network)

      x0vncserver -display :0 -SecurityTypes none

      Otherwise, always enable a SecurityType

      Like

      • Shippy says:

        Will,

        Thanks for the quick reply.

        How do you set the DNS resolve cache timeout? Same as dbinterval?

        FYI, Pi-hole released v4.0 today with beta FTLDNS !

        Hopefully Kayvan has the time to answer my queries.

        Like

      • Will Foster says:

        It’s a DNS (via dnsmasq) setting in the guide:

        cat > /etc/dnsmasq.d/02-custom-settings.conf << EOF
        #### EDIT SETTINGS
        dns-forward-max=5096
        min-cache-ttl=300
        #### END EDIT

        EOF

        Like

      • Shippy says:

        Will,

        1. Should I use min-cache-ttl 300, or 600 as from the article, for a 1G RAM Android Box?

        2. Re: QoS, on low bandwidths, 2-5 Mbps, wouldn’t it matter if you prioritize streaming over downloading?
        Maybe the default SQF router setting works ok instead of cake-sqm at these low bandwidths?

        Like

      • Will Foster says:

        I’d experiment and see what works – you can tail your pihole log with colors indicating cache hits, new lookups or blocks via

        pihole -t

        Start with 300 and see where things sit, increase it to 600 if you’re seeing a lot of previously cached queries drop off and return as lookups again.

        Everyone has their own stances on QoS – It’s really just slightly more civilized packet dropping, I’ve found more bad implementations of it than good ones so I usually don’t mess with it unless I’m managing a network that has a much higher cost traffic class (business VoIP etc). For home usage I don’t tend to mess with it, at least locally. If you’re doing external streams (like via Plex) it may make sense to prioritize this kind of traffic.

        Like

      • Shippy says:

        Thanks again for all the help!
        I wish there were more blogs like this one.

        Liked by 1 person

  10. Shippy says:

    Will,

    FYI. I quoted your 50MB RAM figure for Pi-hole run from here, and the Pi-hole guys agreed.
    Big change from their original 500MB figure…

    https://discourse.pi-hole.net/t/diginc-docker-pi-hole-on-alpine-base-aarch64-qos-priority-cake-sqm/11525

    Like

Have a Squat, Leave a Reply ..

Fill in your details below or click an icon to log in:

WordPress.com Logo

You are commenting using your WordPress.com account. Log Out /  Change )

Google+ photo

You are commenting using your Google+ account. Log Out /  Change )

Twitter picture

You are commenting using your Twitter account. Log Out /  Change )

Facebook photo

You are commenting using your Facebook account. Log Out /  Change )

w

Connecting to %s

This site uses Akismet to reduce spam. Learn how your comment data is processed.
